966 Condensation tank

966 14 50 1

Need help?

call +420 493 761 394

Mo - Fr 06:00 - 14:00

966 24 50 1

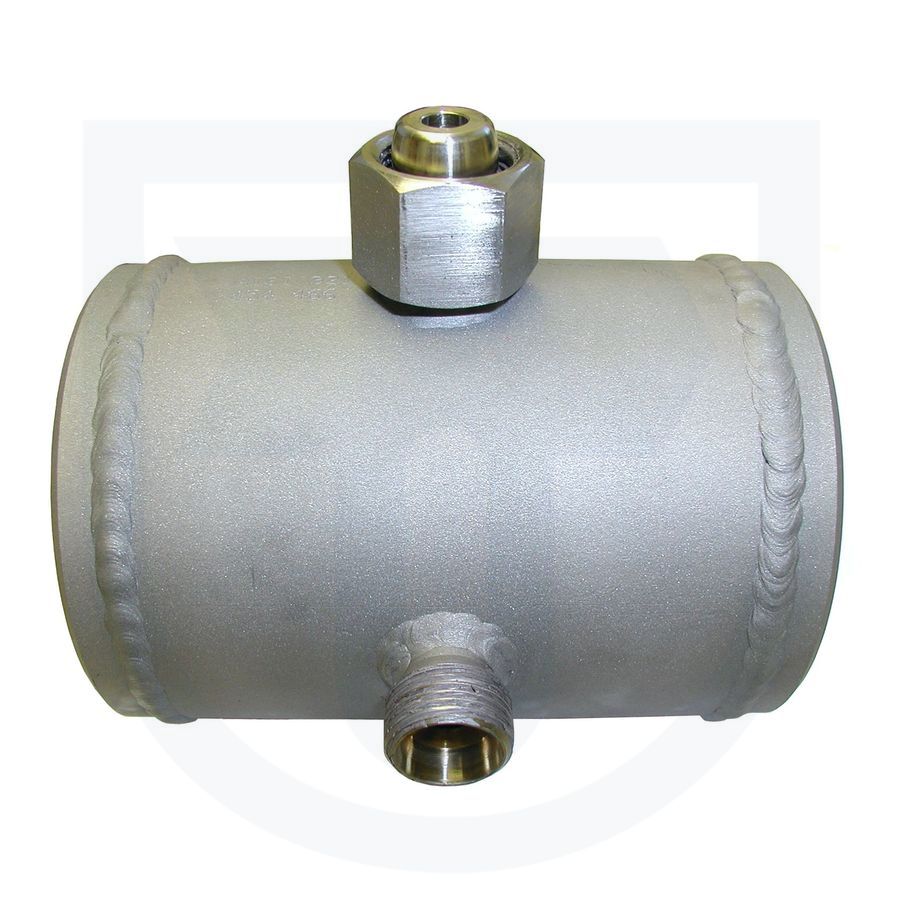

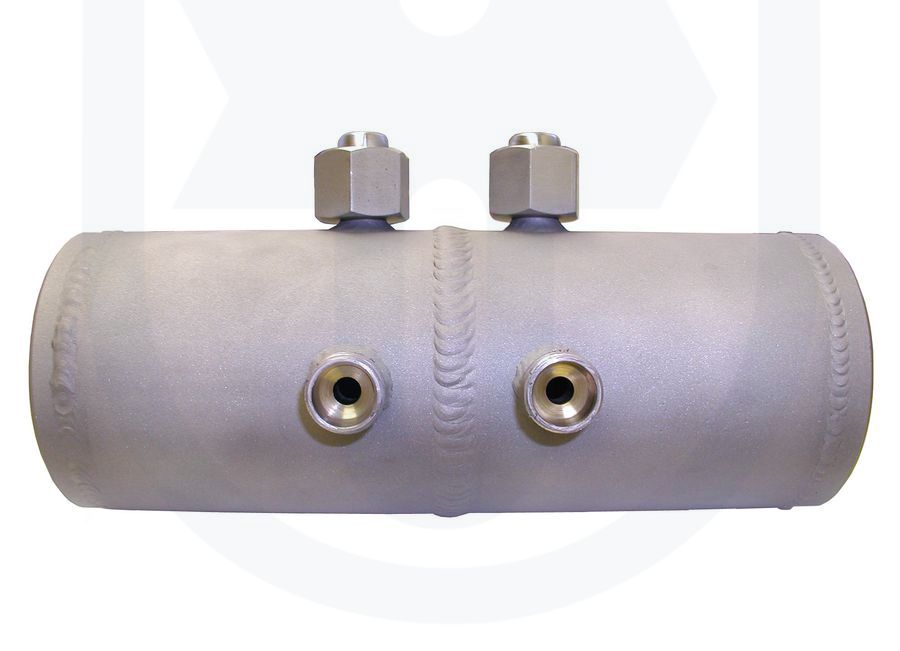

  • In circuits of measurement of flow of steam for securing continuous filling of the impulse piping with condensate at the same height and, thereby, for maintaining water columns in the impulse piping at the same height. The tanks are manufactured in two designs, either as a classic single-chamber or a double-chamber. The double tank replaces two condensation tanks in case of measurement of throttle body. It achieves significant decreasing of the construction dimensions of the whole measuring unit. Another advantage of its design consists in simpler ensuring of the same height of the level in both chambers.
  • As special design with cleanness of internal surfaces of grade I pursuant to TPE 10-40/1926/85 (code PC1)
  • For the environment, where mechanical resistance is required pursuant to EN 60068-2-6 (class AH2) and seismic capability of the electrical equipment of the safety system of the nuclear power stations pursuant to IEC 980 (MVZ level SL-2).
  • For industrial environment with high concentration of SO2 and the environment with sea climate
