17249 Line compensation recorder ZEPAREX 49

17249

Need help?

call +420 493 761 394

Mo - Fr 06:00 - 14:00



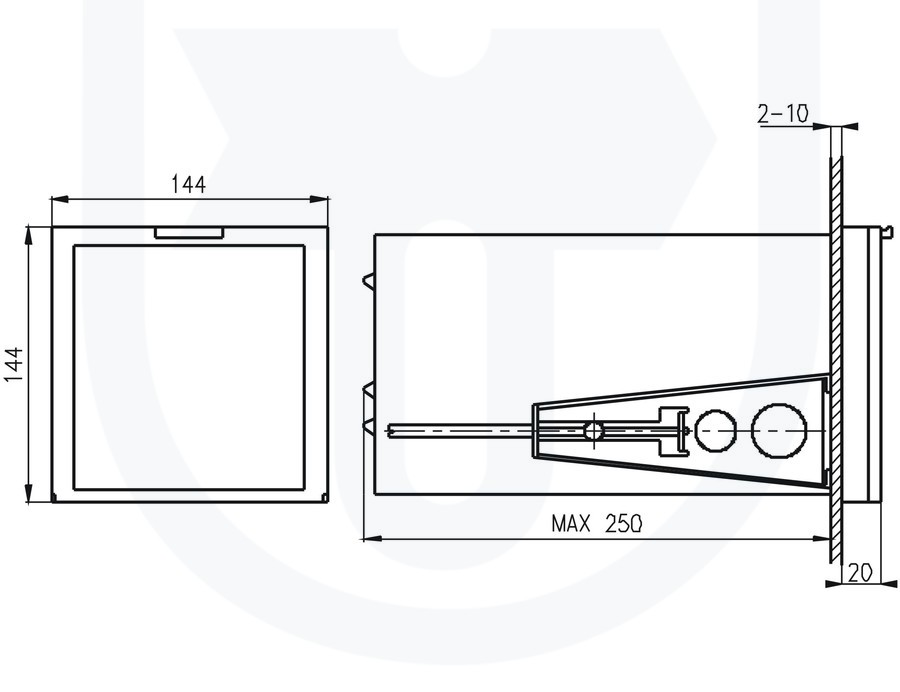

Description of device frame:
Measuring and recording devices together with electronic parts are located on the frame and slid into the box. The frame can be slid out and it is connected with the board of the box by means of a connector.
It consists of the following functional blocks:
- Tilting recorder table
- One to three recording devices with linear motor, pen and servo amplifier
- Paper feed unit
- Mother board of printed circuit with connectors for connection of electronic circuits of individual measuring channels and for connection with the terminal board of the box
- One to three boards of electronic circuits of measuring channels
- One to three range units
All circuits of power supply are located on the terminal board of the box. The face of the box is covered with transparent door with a label.
The range units are accessible after removing the recording table and unscrewing the covering panel. The device has no cut-out fuse. It is protected against overload by an electronic circuit at each linear motor, which disconnects the motor in case of an overload, and by non-destructive thermally dependent limiter in the circuit of primary wiring of the supply transformer. Input signals from measuring places are
processed in each channel with galvanic separation.
